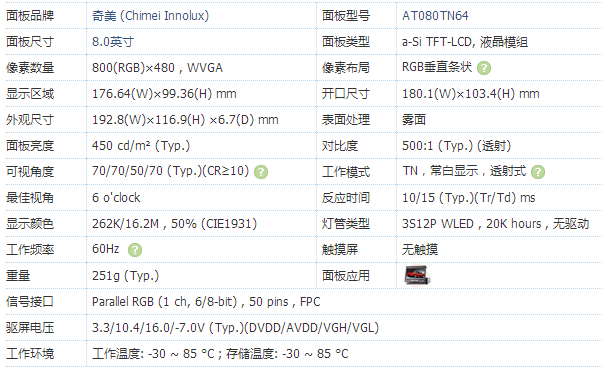

Panel brand: Innolux

Panel model: AT080TN64

Panel type: a-Si TFT-LCD, LCD screen

Panel size: 8.0 inches

Resolution: 800 (RGB) * 480

Display mode: TN, normally white display, transmissive

Display area: 176.64 * 99.36mm

Appearance size: 192.8 * 116.9mm

Surface treatment: matte finish

Panel brightness: 450cd/m2 (Typ.)

Contrast ratio: 500:1 (Typ.) (transmission)

Display color: 262K/16.7M (6-bit/6-6bit Dithering)

Response time: 10/15 (Typ.) (Tr/Td) (ms)

Viewing angle: 70/70/50/70 (Typ.) (CR ≥ 10) (left/right/up/down)

Scanning frequency: 60Hz

Light source type: 3S12P WLED

Signal interface: Parallel RGB (1ch, 6/8-bit)

Panel voltage: 3.3V/10.4/16.0/-7.0V (Typ.) (DVDD/AVDD/VGH/VGL)

Aspect ratio: 16:9

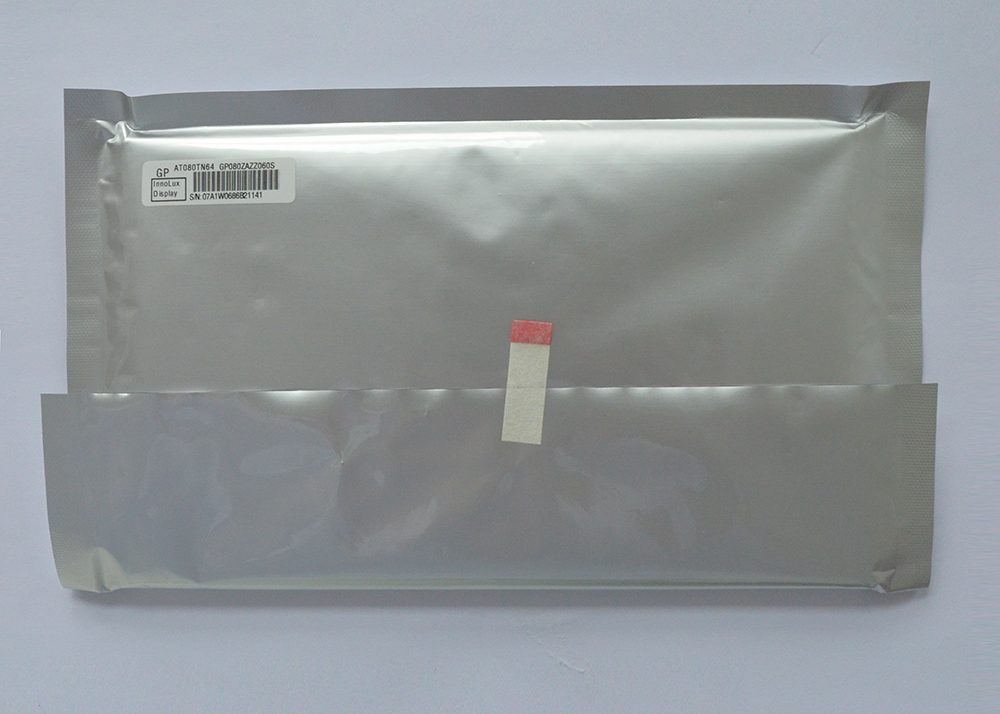

Quantity per box: 30PCS

Packaging box size: 530 * 355 * 255mm (length * width * height)

Gross weight of packaging box: 9.8 ± 0.49 Kgs
